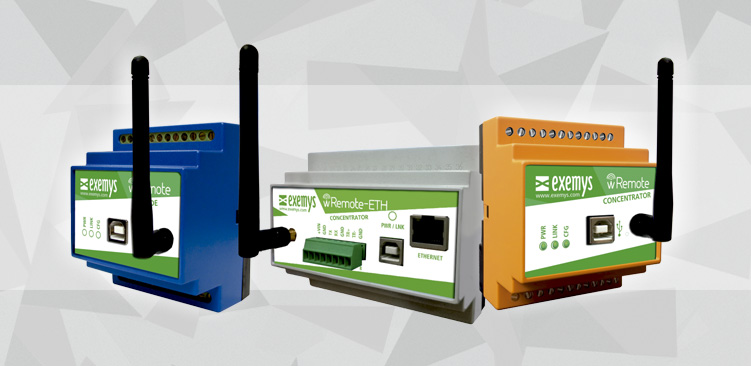

IIoT Industrial Telemetry System with 2.4GHz Radio communication


The wRemote device family is an innovative solution in Wireless Telemetry, powered by Mesh network technology. This system is specifically designed for implementation in industrial environments or open areas, enabling reliable collection of remote and dispersed data.

The benefits of wRemote include:
• Wireless Communication: Eliminates the need for and costs associated with wiring.
• Mesh Networks / Multiple Remote Nodes: Provides broad and flexible coverage within the same area.
• Reduced Installation Cost per Point: Minimizes the initial investment required for installation.
• Mesh Network Technology: Ensures redundancy and greater network range.
• Direct Connection of Transducers: Facilitates the integration and operation of sensors and other measurement devices.

This solution is ideal for companies seeking to optimize their monitoring and control infrastructure without compromising the efficiency or security of data collection. The system consists of a Hub and Remote Nodes.


Models: Concentrator and Remote Nodes
  • IEEE 802.15.4 Communication at 2.4GHz
  • Mesh Network between Devices
  • Suitable for Industrial Environments

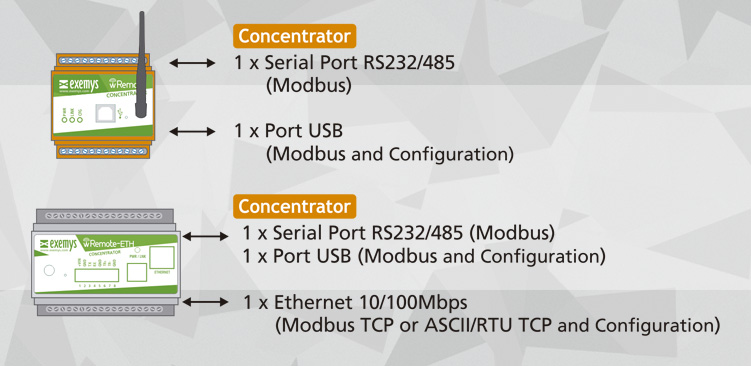

    • Hub / Concentrator
  • RS232/485 Port for Modbus Slaves
  • USB Port for Modbus and Configuration
  • Ethernet Port for Modbus TCP and Configuration

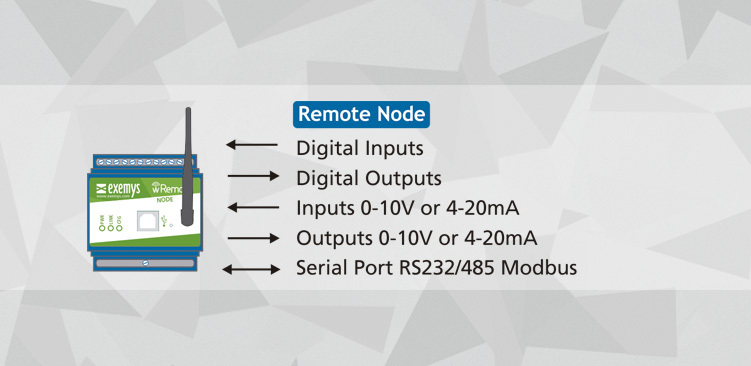

    • Remote Nodes
  • Digital Inputs and Outputs
  • Analog Inputs and Outputs (0-10V and 4-20mA)
  • RS232/485 Serial Port for Modbus Slaves

    • MODELS FUNCTION SERIAL PORT EXTRA ANALOG INPUTS ANALOG OUTPUTS DIGITAL INPUTS DIGITAL OUTPUTS NODES
    wRemote-1000-CN Concentrator RS232/
    RS485     		USB --- --- --- --- 50
    wRemote-1500-ETH-CN Concentrator RS232/
    RS485     		USB/
    ETHERNET    		 --- --- --- --- 50
    wRemote-3005-ND Node RS232/
    RS485     		USB 4x Configurables 0-10V / 4-20mA --- 4 2 ---
    wRemote-5005-ND Node RS232/
    RS485     		USB 2x Configurables 0-10V / 4-20mA 2x Configurables 0-10V / 4-20mA 4 2 ---

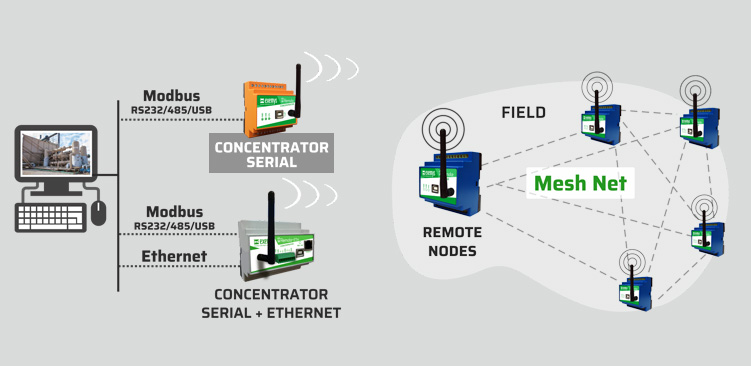

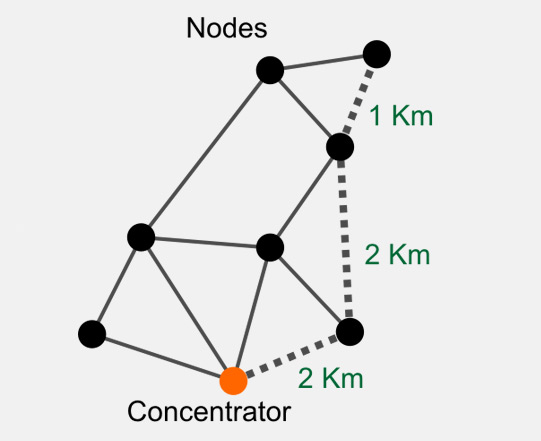

    Mesh network

    The Mesh Network permits the nodes to communicate with each other independently. This means that the nodes cannot send information directly to the Concentrator, but rather can pass it to other nodes on the network so that the destination is reached.
    Advantages of Mesh Network:

  • It is possible to carry messages from one node to another by different paths.
  • Each node has its own communications with the others.
  • Each node extends the scope of communications.
  • It is much safer. If a node fails, another will take over the traffic.

    • Examples of Application

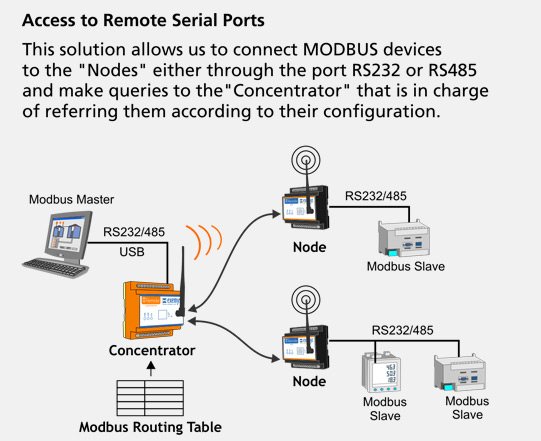

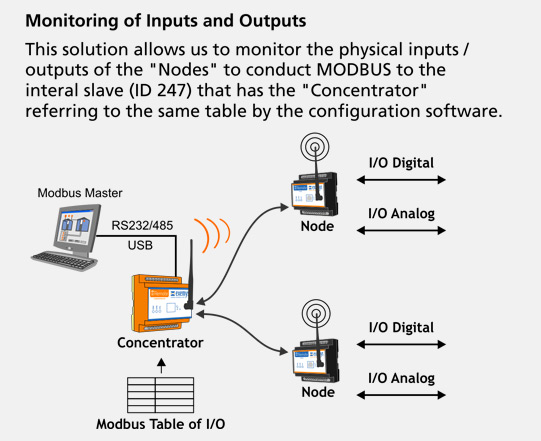

    Monitoring of Inputs and Outputs / Access to Remote Serial Ports
